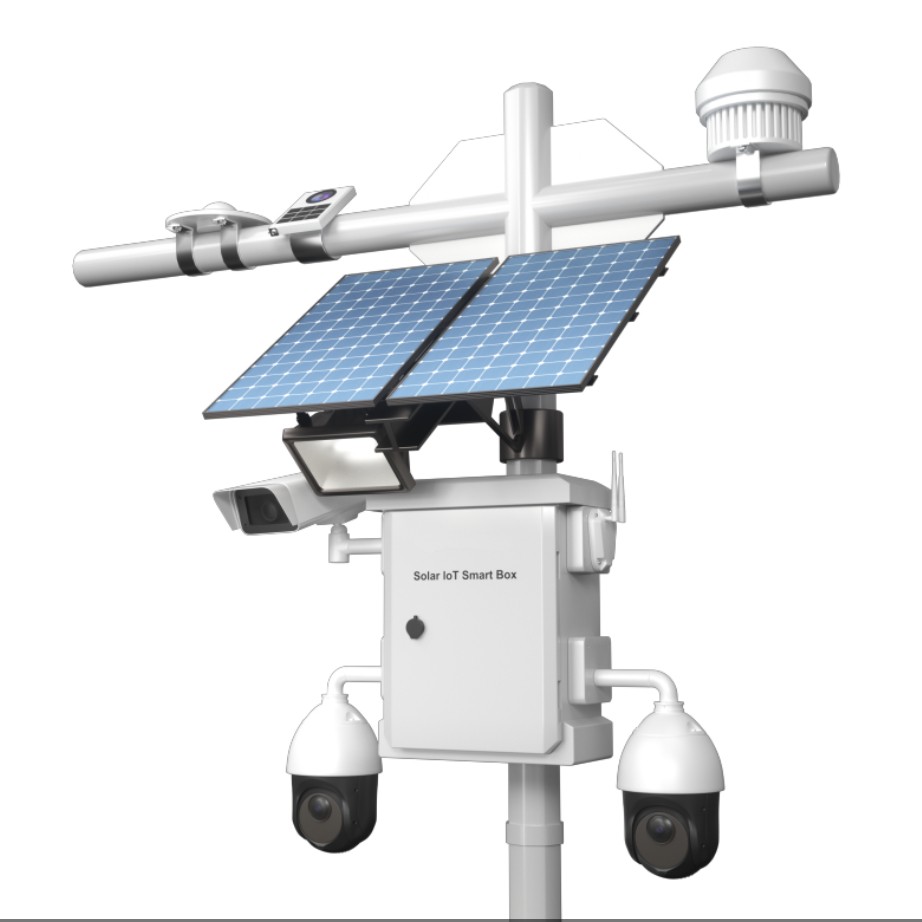

High-resolution image of the GW-AIBOX24V30A-220V solar IoT smart CCTV box showing the rugged IP66 enclosure with solar panel connections, 8 PoE ports, 2 optical fiber ports, and the integrated OLED display. The unit supports solar power, 220V AC input, and has an intelligent battery management system with built-in temperature and humidity monitoring. Designed for reliable outdoor security applications such as construction sites, transportation safety, and remote video surveillance with seamless remote control and data management via 4G and IoT technology.
Main Specifications:
1*IP66 Waterproof box 550(H)*380(W)*220(D) with camera install box，Galvanized cold plate 1.2mm thickness
1*One highly integrated Smart data managent control unit (combines solar, loT,communication, PoE, and operation and maintenance technologies ) incl:
1. 20A solar MPPT control （1*solar power input）Support solar panel voltage, current and power reading and display(solar panel not incl)
2. 1*24V battery input(battery power supply)
3. 220V power supply input(optional)
4. One circuit breaker
5. PoE Switch: 2*1000 optical ports, 8*10/100/1000 interfaces support PoE power supply（IEEE802.3af/at/bt ）
Interface
1. 1 RJ45 out-of-band management,
2. 1 RJ45 console port,
3. one USB port
4. one SIM card port（for 4G/GPS optional）
5. one SD Card slot
l 1x cooling fan （Temperature control）
l Power Supply Output Port
1. 4-way DC12V individual control output
2. 1-way DC24V individual control output
3. 1-way AC24V individual control output
optional:
1* With battery 24V 30A （optional）
2* Strobe Lamp (red & Blue)
3.Camera Hikvision PTZ DS-2SE7C432MW-AEB(14F1)(P3) 4MP 32x Zoom ;Turret IR 8mp Camera: DS-2CD2387G2P-LSU/SL or DS-2CD2387G2-LSU/SL ;LPR Camera: iDS-2CD7AC6G2-IZHS (2.8-12mm)
