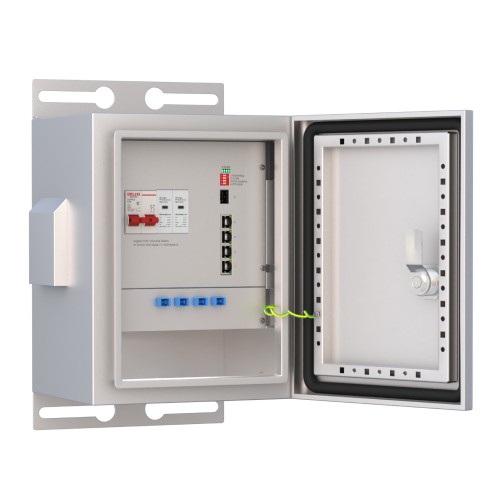

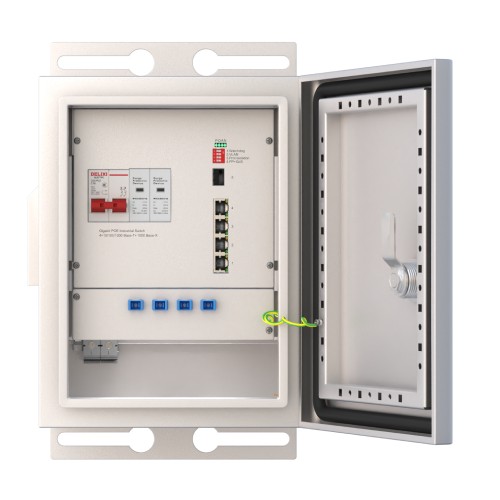

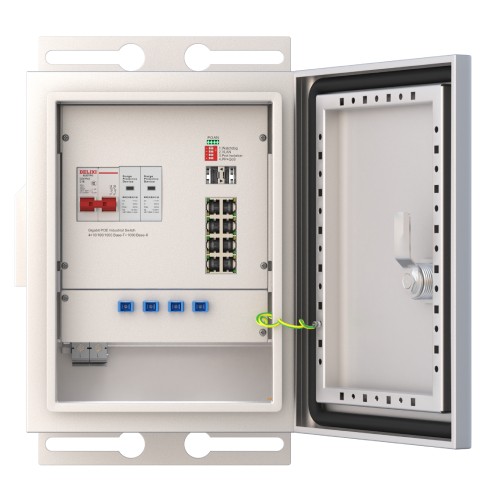

The GW-PBOX108SFG is an industrial-grade outdoor PoE switch box with 8 Gigabit PoE ports and 2 SFP uplink slots, designed for harsh environments from -40°C to 75°C. With IP55 protection, lightning protection, and advanced features like AI Watchdog, VLAN, and port isolation, it's ideal for outdoor CCTV, rail transit, smart city, and intelligent transportation surveillance systems.
Model: GW-PBOX108SFG-I
Features
◎ 8*10/100/1000M PoE ports+2*100/1000M SFP port Industrial PoE Switch, port 1-8 support IEEE 802.3af/at;
◎ PoE port1~port8 support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power is 30W/port;Total 246W
◎ Support AI Watchdog, Port isolation, VLAN, Port Priority +QOS
◎ Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standards;
◎ Pin Assignment 1,2,3,6
◎ Operation TEMP:-40~75°C
◎ Input voltage: AC100-240V, 50/60Hz
◎ IP protection level: IP55;
◎ 5 years warranty.
