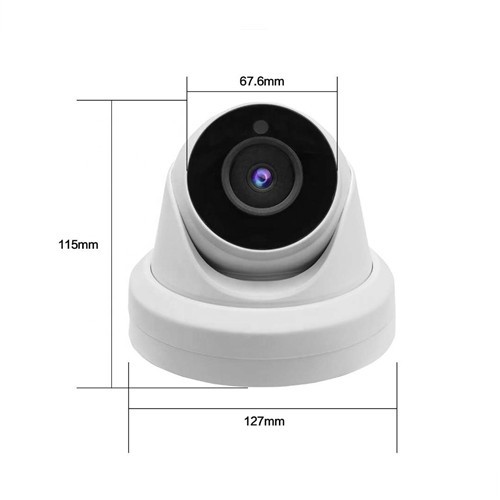

Megapixel 2MP 5X Zoom CCTV Camera Two Way Audio POE IP IR Turret Security Camera

Megapixel 2MP 5X Zoom CCTV Camera Two Way Audio POE IP IR Turret Security Camera

Product Item:GW-IP2326MS-IZ
 • H.265/H.264 2MP IP/Network IR Big Turret Dome Camera
 • Up to 2 megapixel high resolution
 • Max. 1920*1080@30fps(50Hz/60Hz)
 • Support RTSP&Onvif(17.2 with profile S)
   Compatible with many third-party NVRs and CMS
 • Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
 • P2P Cloud service
 • Free PC Client Software and Smartphone APP(P2P)
 • Support Alarm Snapshot to Email and FTP
 • Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT,
    D-WDR,Mirror, Image Flip etc. Functions
 • Audio in/out Optional(RCA Cable Interface)
 • 12V DC (PoE Optional)
 • 5X 2.7-13.5mm Motor Lens
 • IR range: up to 25m
 • Water-proof: IP66

  • Product Detail
  • FAQs


Image    Sensor: 1/2.9” High sensitivity CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.05lux @(F1.0, AGC ON), 0 lux with IR or light
Shutter Time: 1/25 s to 1/10,000 s
Lens: 2.8mm F1.0 fixed lens
Day&Night: 2pcs Warm LED
Image Enhancement: BLC/3D    DNR/WDR
Motion Detection: Support
Privacy Protection: Support(4    Self-customized Areas)
Smart function: Humanoid detection
Illumination for Infrared Switching: 0.5~3Lux
Infrared Wavelength: 850nm
Mimimum Illumination: 0    Lux(IR ON)
LED Light Distance Warm light 20m
Wather-Proof: IP66
Compression Standard
Video Compression: H.265/H.264
Video Bit Rate:

512Kbps~6144Kbps(main stream H.265)

64kbps~2048Kbps(sub stream H.265)

Dual Streams: Yes
Triple Streams: No
Image Resolution:

main stream:2560x1440(4MP)/1920x1080(1080p)

sub stream:720x480(D1)/640x480(VGA)/640x360/352x288(CIF)

Frame Rate:

main stream:25fps(4MP) max.

sub stream:25fps max

Stream: two streams
Image Settings:

3D NR, Image Flip, Saturation, Brightness, Contrast, Sharpness

adjustable via client software, web browser or Smartphone App

Day/Night mode support Full color mode
Audio
Audio Compression: G711U/G711A/AAC
Audio Bitrate 64K(G711)/16k(AAC)
Audio In/Out: Optional (RCA socket)
Build-in MIC: Yes
Volnume adject: Yes
Network
Network Protocols:

Http/Https, TCP/IP, IPv4/v6, UPNP, RTSP/RTMP,FTP, UDP, SMTP, NTP, DHCP, DNS,

DDNS,IP Search(Support P2P, NVR, NVS etc.)

General Function: Anti-Flicker, heartbeat, password protection, privacy mask, Watermark
System Compatibility: ONVIF(17.2 with profile S)
On-line Viewing Max. Support 2 Users Simultaneously
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet Interface
Audio Interface: RCA Audio input/output  Interface (Optional)
Alarm in/out interface: Support(1ch) (Optional)
SD card interface Support TF card(micro TF card,up to 128G) (Optional)
DC Power Plug: DC Power Femate Interface/POE(optional)
General
Operating Conditions: -10 °C ~ 60 °C
Humidity 95% or less (non-condensing)
Power Supply: 12 V DC ± 10%/PoE(Optional)
Power Consumption:

12 VDC ± 10%, Max Power Comsumption Less than 8W

(When the infrared lamps turn on)

Weight: 0.56KG




Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your Deposit payment.

Q: What is your accepted payment type?
A: Wire transfer, Paypal and Western Union; T/T advance 30% and balance when goods ready to ship.

Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What kinds of customization services Offered?
A: Logo/ Label/ Packing Box/ Manual/ Firmware

Q: Delivery time?
A: Usually 2-3weeks

Q: Warranty?
A: 18months for cam, 2year for Recorder

Q:What can you buy from us?
A:CCTV Camera,IP Camera system,Wifi Camera system,Analog Camera system,NVR DVR
   CCTV Accessories:Power adapter, HDD(brand new and refurbish),Bracket etc; We can help  to sourcing high quality with good price for all your enquirements.

...
