Megapixel 8mp HIk protocol Security surveillance CCTV IP Camera

Megapixel 8mp HIk protocol Security surveillance CCTV IP Camera

Product Item:GW-IP2384HC-I

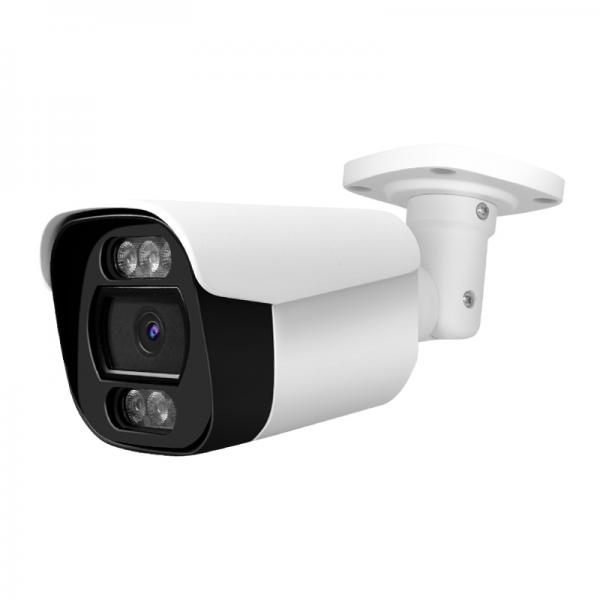

 • H.265/H.264 8MP IP/Network Dual Light Full Color Starlight IR Turret Camera
 • Up to 8 megapixel high resolution
 • Max. 2560*1440@25fps(50Hz/60Hz)
 • Support RTSP&Onvif(17.2 with profile S)
   Compatible with many third-party NVRs and CMS
 • Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
 • P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT

  • Product Detail
  • FAQs




Image    Sensor: 1/2.9” High sensitivity CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.05lux @(F1.0, AGC ON), 0 lux with IR or light
Shutter Time: 1/25 s to 1/10,000 s
Lens: 2.8mm F1.0 fixed lens
Day&Night: 2pcs Warm LED
Image Enhancement: BLC/3D    DNR/WDR
Motion Detection: Support
Privacy Protection: Support(4    Self-customized Areas)
Smart function: Humanoid detection
Illumination for Infrared Switching: 0.5~3Lux
Infrared Wavelength: 850nm
Mimimum Illumination: 0    Lux(IR ON)
LED Light Distance Warm light 20m
Wather-Proof: IP66
Compression Standard
Video Compression: H.265/H.264
Video Bit Rate:

512Kbps~6144Kbps(main stream H.265)

64kbps~2048Kbps(sub stream H.265)

Dual Streams: Yes
Triple Streams: No
Image Resolution:

main stream:2560x1440(4MP)/1920x1080(1080p)

sub stream:720x480(D1)/640x480(VGA)/640x360/352x288(CIF)

Frame Rate:

main stream:25fps(4MP) max.

sub stream:25fps max

Stream: two streams
Image Settings:

3D NR, Image Flip, Saturation, Brightness, Contrast, Sharpness

adjustable via client software, web browser or Smartphone App

Day/Night mode support Full color mode
Audio
Audio Compression: G711U/G711A/AAC
Audio Bitrate 64K(G711)/16k(AAC)
Audio In/Out: Optional (RCA socket)
Build-in MIC: Yes
Volnume adject: Yes
Network
Network Protocols:

Http/Https, TCP/IP, IPv4/v6, UPNP, RTSP/RTMP,FTP, UDP, SMTP, NTP, DHCP, DNS,

DDNS,IP Search(Support P2P, NVR, NVS etc.)

General Function: Anti-Flicker, heartbeat, password protection, privacy mask, Watermark
System Compatibility: ONVIF(17.2 with profile S)
On-line Viewing Max. Support 2 Users Simultaneously
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet Interface
Audio Interface: RCA Audio input/output  Interface (Optional)
Alarm in/out interface: Support(1ch) (Optional)
SD card interface Support TF card(micro TF card,up to 128G) (Optional)
DC Power Plug: DC Power Femate Interface/POE(optional)
General
Operating Conditions: -10 °C ~ 60 °C
Humidity 95% or less (non-condensing)
Power Supply: 12 V DC ± 10%/PoE(Optional)
Power Consumption:

12 VDC ± 10%, Max Power Comsumption Less than 8W

(When the infrared lamps turn on)

Weight: 0.56KG



Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your Deposit payment.

Q: What is your accepted payment type?
A: Wire transfer, Paypal and Western Union; T/T advance 30% and balance when goods ready to ship.

Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What kinds of customization services Offered?
A: Logo/ Label/ Packing Box/ Manual/ Firmware

Q: Delivery time?
A: Usually 2-3weeks

Q: Warranty?
A: 18months for cam, 2year for Recorder

Q:What can you buy from us?
A:CCTV Camera,IP Camera system,Wifi Camera system,Analog Camera system,NVR DVR
   CCTV Accessories:Power adapter, HDD(brand new and refurbish),Bracket etc; We can help  to sourcing high quality with good price for all your enquirements.

...
